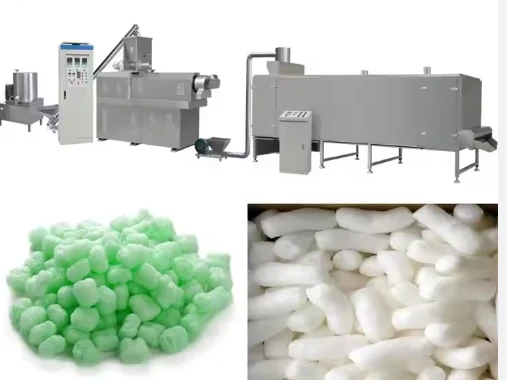

Detailed explanation of the core sections of Biodegradable Packaging Filling Machine (taking starch-based biodegradable materials as an example), including equipment functions, technical parameters and production processes:
I. Functions of core equipment of the Biodegradable Packaging Filling Machine
1. Powder mixer (mixing system)
Function: Evenly mix corn starch/cassava starch with plasticizer (glycerol), water, and modifier (such as PLA/PBAT) to form a plastic wet material.
Key design:
Paddle stirring: low speed and high shear force to avoid starch granule agglomeration.
Temperature control interlayer: heating to 50-70℃ to promote plasticizer penetration.
Humidity monitoring: real-time adjustment of moisture content (usually 15-25%).
2. Screw feeder (conveying system)
Function: stably convey the mixture to the extruder feed port to avoid bridging and breaking.
Technical points:
Double helix structure: anti-sticking design (Teflon coating or stainless steel polishing).
Variable frequency speed motor: linked with the extruder feed rate, error ±2%.
Tilt angle: 30-45° to optimize conveying efficiency (depending on the height of the plant).
3. Extruder (foaming molding core) of Biodegradable Packaging Filling Machine
Function: to melt and foam starch through high temperature and high pressure to form porous cushioning material.
Core configuration:
Screw segmentation:
Feeding section: deep groove design, fast conveying.
Compression section: heating to 120-160℃, starch plasticization.
Homogenization section: inject foaming agent (such as supercritical CO₂), pressure control 5-15MPa.
Die type:
Round hole die: produce granular fillers (diameter 2-10mm adjustable).
Flat die: produce sheets, which are subsequently cut into strips/net fillings.
