Products Description

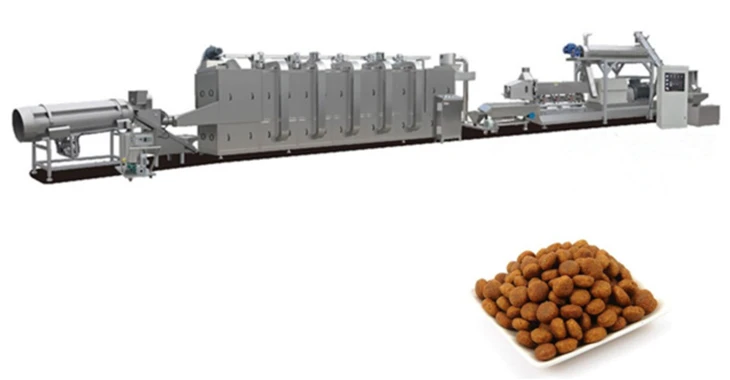

The production line consists of several stages starting with the raw material receiving system, where main ingredients such as fish meal, soybean meal, and corn are received and stored. The raw materials are then pre-cleaned and transported to the grinding system. The grinding process ensures that the raw material is in small and homogenous sizes for easy mixing and feeding.
After grinding, the next stage is the mixing system where the raw materials are fully mixed with other micro-ingredients such as vitamins, minerals, and amino acids. The process ensures that the nutrients are distributed evenly in the final product. Next, the mixed ingredients move to the pelleting system, where the mixture is formed into pellets of desired sizes and shapes.
The final stage of the fish feed production line is the packaging system, where the finished product is processed, weighed, and packed for distribution. The production line is designed to produce high-quality feed, with precise nutritional content, free from pathogens, and mold-free. The production process is fully automated, with minimal human intervention, making it efficient and cost-effective.
Flow Chart
Mixer---Conveyor----Twin screw extruder----Vibrating machine--Air blower--Drying machine--Hoister--Flavoring machine
Technical Parameter
|
Model
|
MD-65
|
MD-70
|
MD-85
|
MD-100
|
MD-110
|
|
Voltage customized
|
380v/50Hz
|
380v/50Hz
|
380v/50Hz
|
380v/50Hz
|
380v/50Hz
|
|
Installed power
|
22kw
|
45kw
|
55kw
|
110kw
|
160kw
|
|
Capacity
|
120-150kg/h
|
200-300kg/h
|
400-800kg/h
|
1000-2000kg/h
|
2000-3000kg/h
|
|
Length
|
26m
|
28m
|
45m
|
45m
|
55m
|
Features
1. Automated feeding system - --Automatically take fish feed from the hopper and deposit it into the extruder.
2. Variable speed control - --This feature allows for precise temperature and pressure changes for optimal extruder performance.
3. Temperature sensing - --Fish feed extruders typically have temperature sensors embedded in their barrel or die that provide feedback to improve the performance of the extruder.
4. Feed-material selection - --Fish feed extruders should be able to process a variety of feed materials, including cereals, nuts,oils and fats.
5. Pelletizing capabilities - --Many fish feed extruders come with a pelletizing head, allowing for more uniform pellets with agreater surface area for improved digestion.
Samples
Main Machine
Function: mainly using for mixing raw material, water and addictives.
Power:4kw
Output:40kgs/batch
Dimension:1500*750*1500mm
Quantity:1 PC
The main functions of extruder are extrusion and material puffing. This automatic extruder is easy to operate and with solid
performance for long term.
Capacity:200-300 Kg/h
Feeding Material Motor:0.75 kw
Driving Motor:37kw
Rotary Cutting Motor: 0.75 kw
Heating Motor: 12 kw
To sprayer the oil as well as the other flavor on the dog food in order to make special smell to make the fish food like to eat
as well as make taste delicious.
Power:1.5kw
Capacity: >=80kg/h
Dimension: 3400*800*2300mm
Advantages
1. Increased Nutritional Value: Extruded fish feed is more nutritious compared to traditional forms of feed. The process of extrusion helps to preserve the nutritional value of the feed, resulting in improved growth and healthy fish.
2. Cost-Effective: Fish feed extrusion equipment is cost-effective in the long run. The process of extrusion ensures that the feed is uniform in size and shape, and the equipment can produce large quantities of feed in a short time, saving on production costs.
3. Reduced Waste: Extruded fish feed has a longer shelf life compared to traditional feed, meaning fewer losses due to spoilage and reduced waste.
4. Enhanced Digestibility: Extruded feed is more easily digested by fish due to the cooking process, leading to improved nutrient absorption, better growth, and reduced feed costs.
5. Increased Production Capacity: Extrusion equipment comes in different sizes and capacities, making it possible to produce different feed types, shapes, and sizes to suit the specific needs of the fish species. This results in improved production capacity and increased profits.
FAQ
Q: How long is your production cycle?
A: Usually 35 working days, the exactly delivery time is depending on the quantity and your ordering time.
Q: Can you help customization process line?
A: Of course, according to your needs, our experienced engineers and technicians can help you arrange the layout and installation of the production line according to the actual situation such as your workshop layout.
Q: How long is your warranty period?
A: One year after commissioning is completed.
Q: Will you help us if we have any problems in future production?
A: It is necessary, you can contact me through mobile phone, WhatsApp, etc. We are always at your service. We will help resolve your issue as soon as possible.
